Automatic double layer fruit energy bar making machine
Description:

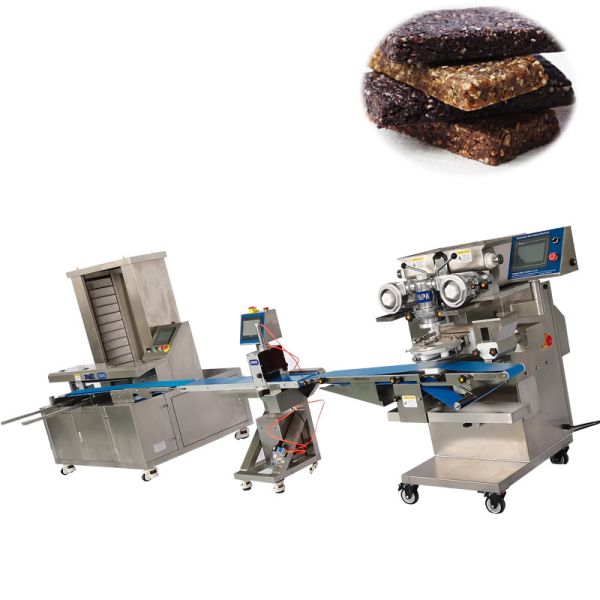

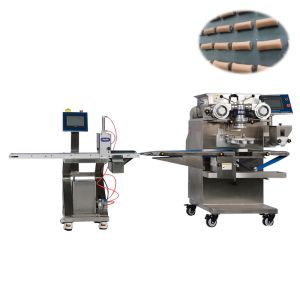

The fully automatic double layer energy bar production line
consists of the following equipment: a P160 fully automatic
encrusting machine, a fully automatic energy bar cutter, and a
fully automatic tray sorting machine. The P160 fully automatic
encrusting machine acts as a protein energy extruder, form the
mixture or dough to the bar with double layers or three layers. The
protein bar cutter cuts the long strips into strips, squares,
bite-sized pieces, rolls, and round slices. The tray sorting
machine collects the finished products in sequence.
Protein Bar Extruder Features:
* The machine body and hopper are made of 304 stainless steel.
* Custom-designed nozzles allow for the production of protein bars
in various sizes.
* It can produce multiple rows of protein bars simultaneously,
suitable for both small-scale and large-scale production.
* The extruder and cutter are designed separately for easy
cleaning.
* The machine is pre-packaged at the factory; no installation is
required, simply connect it to a power source.
* Automatic control; simply change the numbers on the screen.
Specifications:
| Model | P160 |
|---|
| Capacity | 60 pcs/min |
|---|
| Application | Stuffed date bar, date cookies, date roll, fig newtons, date bites,
etc. |
|---|
| Product weight | 10-250g |
|---|
| Casing and filling proportion | 1:9-10:0 |
|---|
| Voltage | 220V, single phase |
|---|
| Power | 4.5kw |
|---|
| Dimension | 4000*1650*1560mm |
|---|
| Weight | 650KG |
|---|
Stuffed energy bar making machine demo video:
Food produced by stuffed energy bar making machine:
Application:
Stuffed date cookie bar making machine video:
Date paste bar making machine video:
Chocolate coated date paste bar production line video:
Optional device:
1. Automatic ball roller machine
The ball roller machine can be added in the date bar production
line for make date ball, coconut date ball, coconut ball, energy
ball, etc. The ball roller machine is a small sized and separated
unit which can be easy moved, It is an ideal equipment for customer
to develop ball products.
2. Automatic stamping machine
Automatic stamping machine can be added to the date bar production
line for making mooncakes and maamouls. The stamping machine is a
also small sized and separated unit, it just need custom made mould
for stamping mooncakes or maamouls with different patterns. It is
an ideal equipment for customer to develop mooncake and maamoul
products.
Shanghai Papa Industrial Co.,LTD is a professional manufacturer for
making the date bar machine, our date bar making machine is CE
certificated and exported to whole world, especially to Europe and
USA. Welcome to contact us if you want to know more details of our
energy bar making machine!
